Fast Splicing Kits For Conveyor Belts

Technical Data

Style ： Slim and Lightweight
Applicable belt thickness ： 5-13mm
Tension strength ： 600N/mm (Can up to 1200N/mm)
Rub resistance ： 15Mpa (Can up to 25 Mpa)
Working temperature ： Room temperature, high and low temperature resistance
Customized ： Acid and alkali resistance, oil resistance, fire resistance, etc.

Product Characteristic

Quickly: Belt fastener installment can be finished within 2 hours and ready to start work.

Stable: Operation technology is stable and reliable. Your workers can easily install belt fastener although without professional training.

Strong: The mechanical joint part with strong strength and long service life.

Saving: Easily repair and low cost with short joint length can saving time and belt materials.

Installation

- without need of physical strength

- quick installation (saves downtime)

- under any weather conditions

- using battery or pneumatic operated screw driver, no need of electricity power

- no use/need of expensive equipment

- no need of highly skilled operator

- Compatible with conveyor scraper

- Perfect for tubular belt

- Leak proof

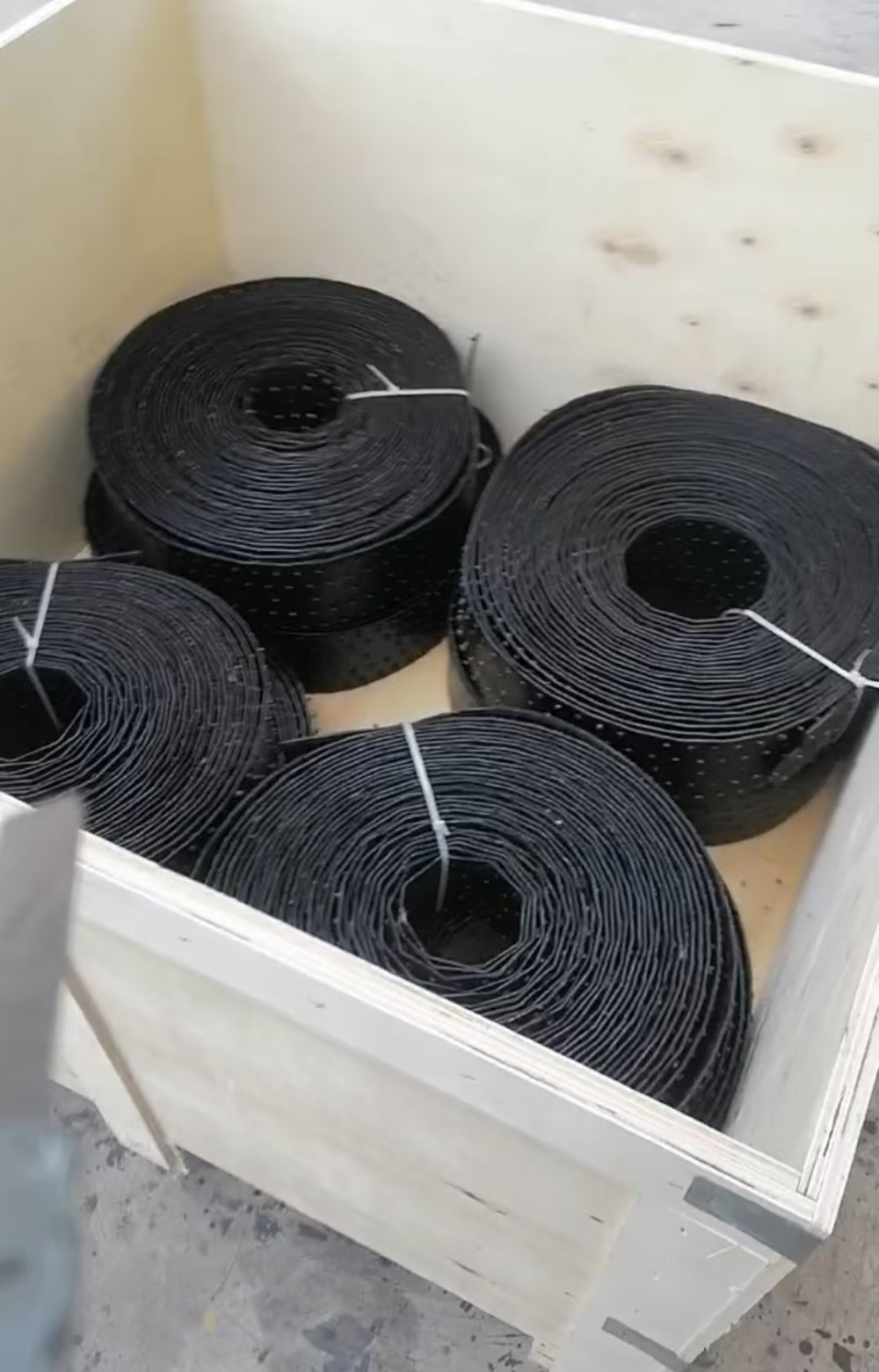

- Available on coil or «ready to use» cut lengths

- Many rubber qualities available

Screws

Highly resistive and is the choice for most applications such as coal mines, cement plants, quarries, power plants, etc
Stainless steel screws are 316 or 304 non-magnetic and are used for corrosion and acid resistance, applications: gold mines, fertiliser plants, recycling facilities and sorting centres etc.
