Composite Hose

Composite hose is available in a complete range of advanced films and fabrics to meet all hose requirements.

Product Description:

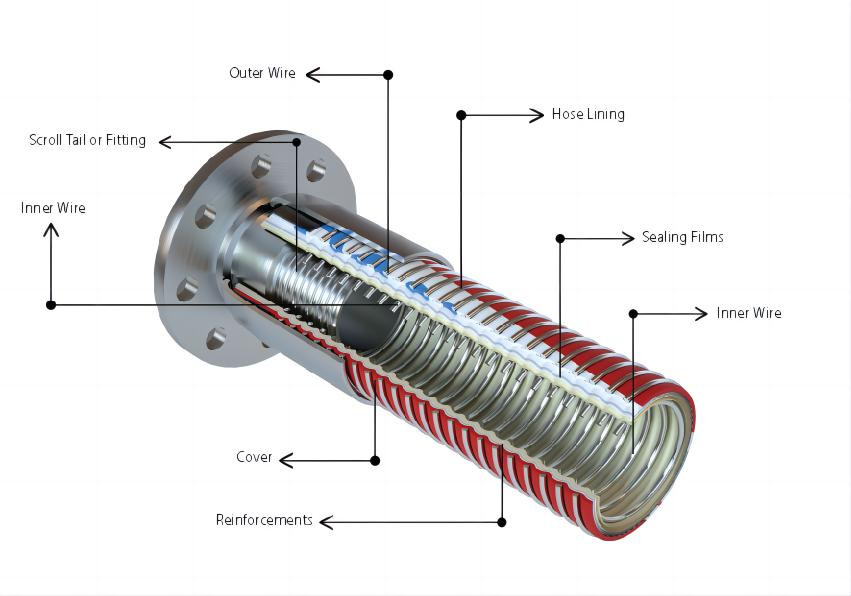

Structure of the new composite hose: the hose body is composed of a multi-layer functional polymer film and a synthetic fiber fabric reinforcement layer. The inner and outer layers of spiral metal wires are tightly wound.

Internal spiral steel wire: usually stainless steel, galvanized steel, aluminum alloy, polypropylene, or coated steel wire;

Outer spiral steel wire: basically use stainless steel or galvanized steel;

Inner layer: select functional films such as Polietilene Nylon PET according to the characteristics of the conveyed material, and compound the hose with a wide range of liquid-resistant sealing properties through proprietary technology. Reinforcement layer and anti-aging outer layer: the reinforcement layer provides the hose with pressure-bearing strength. The outer layer of the hose adopts an anti-wear and anti-aging colored outer layer.

Connectors like coupling, clamps, fittings etc. will be provided according to the customer's request.

Standard ：BS EN 13765; GB∕T 37997 ; ISO 27126.
